Xtremo Series - X-71OO, X-72OO & X-74O0

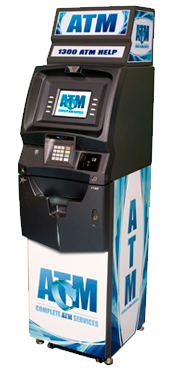

Introducing the Xtremo X-7100, X-7200 and X-7400 models.
Its compact size ensures that this reliable and easy to use ATM will fit easily into your business premises.
Featuring a fast 15 second dispensing time and a choice of two cash canisters, 4 cash canisters or a rear loading machine, the Xtremo series of ATM is all you will ever need. These compact ATMs allow you to offer your customers access to their cash in your convenient, friendly and safe location. View galleries of the X-7100 ATM, X-7200 and X-7400 ATMs.
The Xtremo can be equipped the way you want it, with optional features that include:
- Large 8" colour screen
- Stand-alone or through-the-wall installation
The Xtremo features a PC-based operating system that makes software changes or additions safe, easy and economical. Its front access and modular parts make maintenance fast and simple.
Wireless
The X-7400 utilises a wireless GPRS modem for communications, so there is no need for additional telephone lines. A regular electrical powerpoint is all that’s needed to power the machine.
No ATM can match Xtremo's rugged durability in the most demanding locations. Xtreme are engineered to minimize the number of mechanical parts. Fewer parts mean fewer breakdowns.
The result is that an Xtremo ATM will continue to dispense cash, provide prepaid convenience services and offer the simplest maintenance in the business long after competing ATMs have been replaced.
The attractive design, large colour screen, user-friendly interface and dip card reader make these machines popular with users in a broad range of leisure, hospitality, retail and convenience locations.
Height: 165cm Width: 45cm Depth: 55cm
Its compact size ensures that this reliable and easy-to-use ATM will fit comfortably into your business premises.
Complete ATM Services' lifetime parts and labour warranty ensures that your ATM is always ready to dispense cash, and allows you to relax and enjoy the benefits of increased profits and higher customer traffic.
ATM Specifications
|
Module |
X-7100 |
X-7200/X-7400 |
|
Display |
8" TFT Colour display with built-in Vandal Cover Resolution: 640 x 480 |
8" TFT Colour display with built-in Vandal Cover Resolution: 640 x 480 |
|
Keyboard/ EPP compliant |
16 Numerical Keys, EPP with Triple DES |
16 Numerical Keys, EPP with Triple DES |
|
8 Function Keys |
8 Function Keys |
|
|
Card Reader |
Dip Type (EMV 4.0 ISO 3-Track Read) |
Dip Type (EMV 4.0 ISO 3-Track Read) |
|
Printer Method |
Direct Thermal Line Printer |
Direct Thermal Line Printer |
|
Print Characters |
English, Numeric, Line, Symbol, ASCII 96 Characters etc. |
English, Numeric, Line, Symbol, ASCII 96 Characters etc. |
|
Paper Setting |
Semi-auto loading method |
Semi-auto loading method |
|
Paper Width |
79mm |
79mm |
|
Print Speed |
100mm/sec (600 dots line/sec) |
100mm/sec (600 dots line/sec) |
|
Receipt Capacity |
Max 150 mm F diameter |
Max 150 mm F diameter |
|
Power Supply |
DC24V |
DC24V |
|
Cutter Life |
300,000 cuts |
300,000 cuts |
|
Cassette Capacity |
1,000 new notes |
2,000 new notes (X-7200) 4,000 new notes (X-7400) |
|
Dispensing Speed |
Max. 5 Notes/sec |
Max. 5 Notes/sec |
|
Interface |
Serial (RS232C) |
Serial (RS232C) |
|
Access Direction |
Front Access |
Front Access |
|
Reject Box |
Up to 40 notes |
Up to 100 notes |
|
Number of Cassettes |
Single (Total: 1,000 notes) |
Single - X-7200 (2,000 notes) Two - X-7400 (4,000 notes) |
|
CPU |
Intel PXA 255 |
Intel PXA 255 |
|
Main Memory |
64 Mb SDRAM |
64 Mb SDRAM |
|
Fresh Memory |
32M |
32M |
|
O/S |
Windows CE |
Windows CE |
|
Modem |
RS232 Serial Modem (GPRS Cellpad) |
RS232 Serial Modem (GPRS Cellpad) |
|
Journal |
Electronic journal |
Electronic journal |
|
Language |
Up to 7 languages |
Up to 7 languages |
|
Security |
UL 291 Business Hours Safe |
UL 291 Business Hours Safe |
|
La Gard Electronic Combination Lock |
La Gard Electronic Combination Lock |
|
|
Power |
220 VAC, 7A, 50/60Hz with Noise Filter |
220 VAC, 7A, 50/60Hz with Noise Filter |
|
Dimension |
450 (W) _ 550 (D) _ 1650(H) mm |
450 (W) _ 550 (D) _ 1650(H) mm |
|
Weight |
90 Kg |
120 Kg |
|
Maintenance Access |
Front Access |
Front Access |
|
Operating Manual & Quick Reference Guide |
Operating Manual & Quick Reference Guide |
|
|
Remote Management Software |
Remote Management Software |
|
|
Illuminated Topper |
Illuminated Topper |
